Universal trailers
*Images of trailers are symbolic

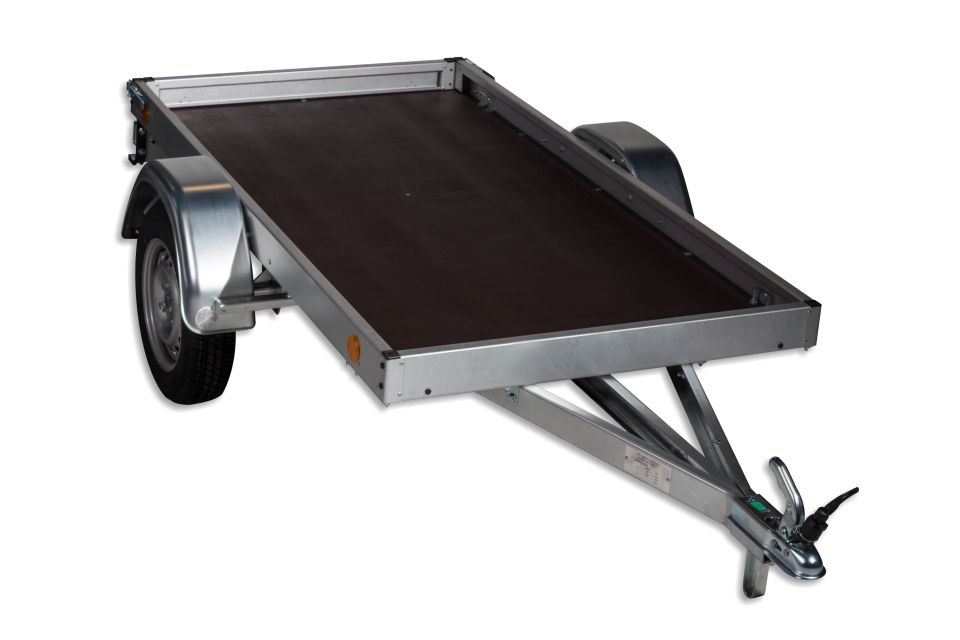

Universal trailer without overrun brake, up to 750 kg
The MU-P type of trailers are especially distinguished by a robust chassis (three longitudinal beams), zinc coated mudguards with an additional transverse support, and Al-Zn box.
Possiblities of sidewalls extension and purpose of use:
- Basic platform option with additional loading ramps for transport of quads or small garden tractors;
- additional sidewalls transfer your trailer into a classic trailer convenient for transport of different goods;
- upgrade with M package, motorcycle transport option.
- Stable zinc coated chassis
- Additional longitudinal beam
- Zinc coated mudguards
- Water resistant, anti-slip base plate
- AL-Zn sidewalls
- Various accessories available (additional sidewalls, loading ramps)
| Type of trailer | Box length | Box width | Box height | Weight (kg) | Loading capacity (kg) | Maximum authorised weight (kg) | Wheels |
|---|---|---|---|---|---|---|---|
| MU-P2 | 2,020 | 1,075 | 100 | 120 | 630 | 750 | 13″ |
| MU-P3 | 2,435 | 1,235 | 95 | 145 | 605 | 750 | 13″ |
| MU-P4 | 2,435 | 1,435 | 95 | 150 | 600 | 750 | 13″ |
Accessories:
- M Package – 312042 2x loading bridge + 1x ramp with a screw kit
- Q Package – 312244 2x aluminium loading ramp with a srew kit
*Images of trailers are symbolic

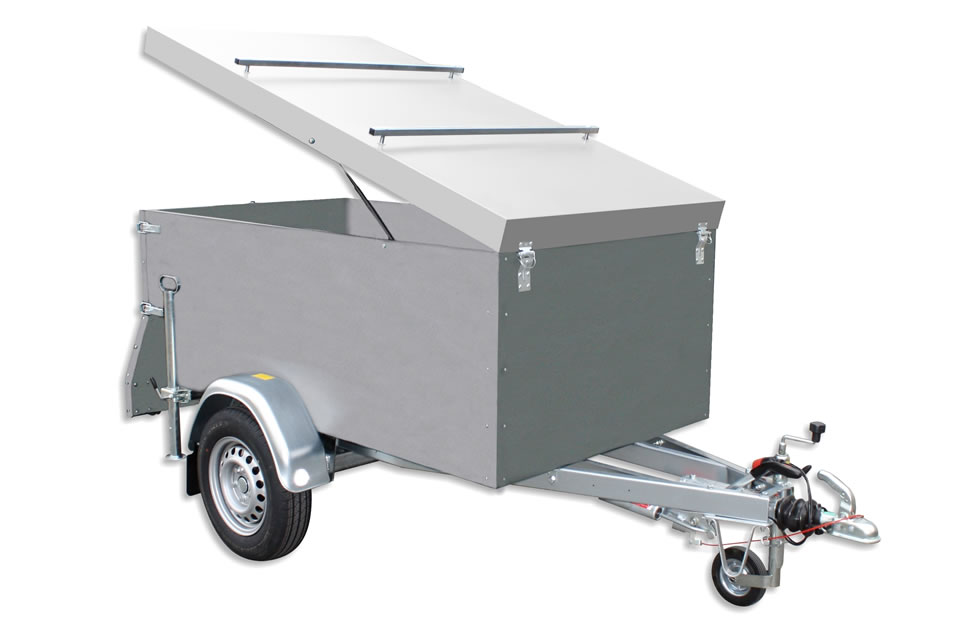

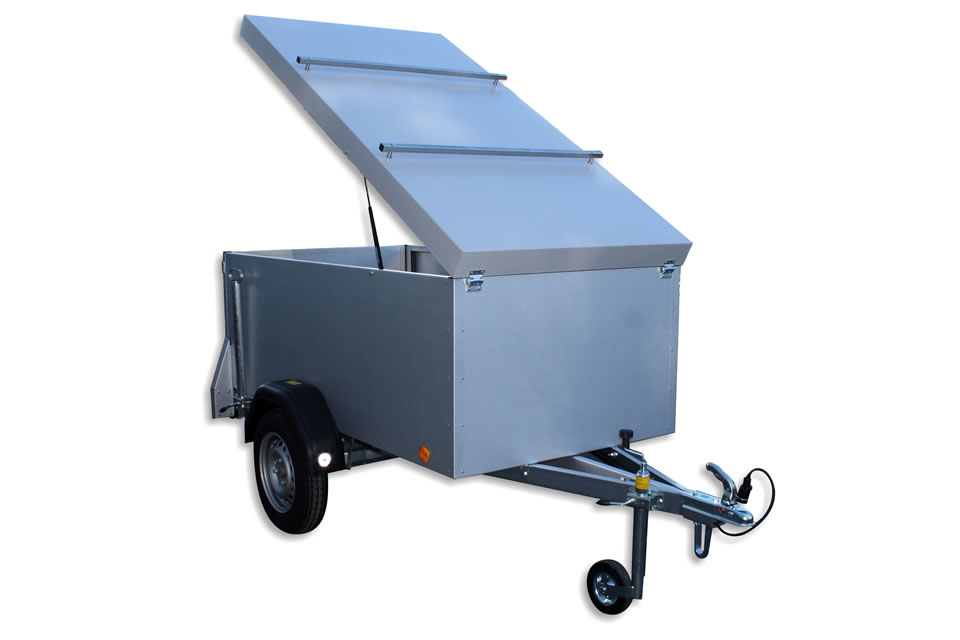

Universal box trailer with or without overrun brake
Trailers EU2 box (without overrun brake) and EB2 (with overrun brake) are designed for a wide range of applications. The box is made of aluminium-zinc, side gate opening with the latch option allows an easy access to the load. The cover with two brackets opens by means of gas springs and the cover itself offers a possibility of fitting a great variety of standard attachments such as rooftop cargo carriers, bike and ski racks…
Trailer’s design and functionality will statisfy any customer, no matter how demanding the request.
- Stable zinc coated chassis
- Al-Zn sidewalls
- Cover opening with dampers
- Additional brackets on the trailer cover
- Side opening of the rear gate
- Zinc coated mudguards (EU2 box with overrun brake)
- Water resistant, anti-slip base plate
- Colour combinations available: white, red, black, standard colour
| Type of trailer | Box length | Box width | Box height | Weight (kg) | Loading capacity (kg) | Maximum authorised weight (kg) | Wheels |
|---|---|---|---|---|---|---|---|
| EU2 box | 2,020 | 1,075 | 780 | 215 | 535 | 750 | 13″ |
| EU2 box with overrun brake | 2,020 | 1,075 | 780 | 272 | 728 | 1000 | 13″ |
*Images of trailers are symbolic

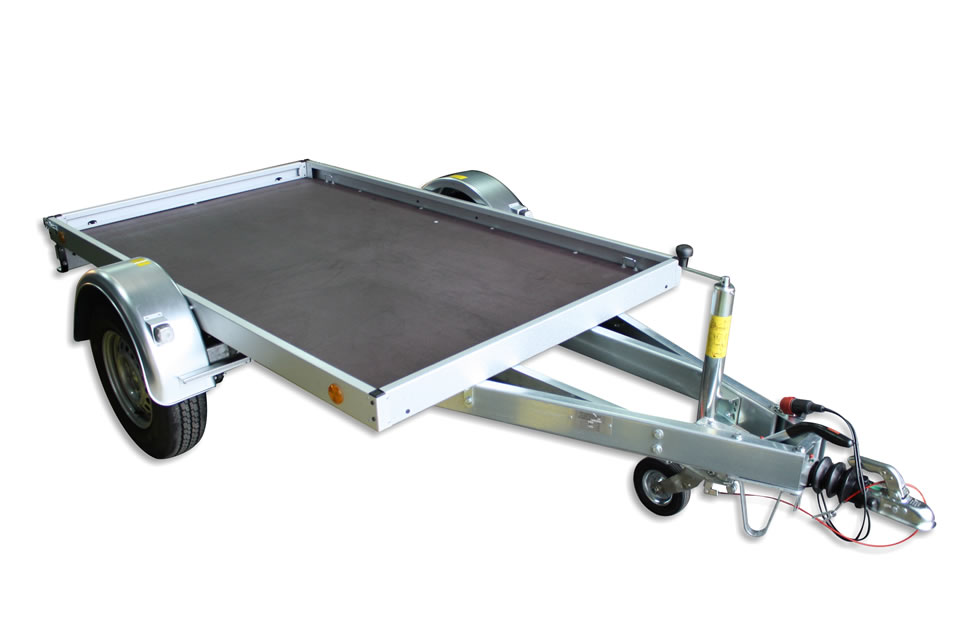

Universal trailers with overrun brake
Trailers MB-P feature a robust chassis with four longitudinal beams and overrun brake allowing a loading capability up to 1300 kg of maximum authorised weight.
Possibilities of sidewalls extension and purpose of use:
- basic platform option with additional loading ramps is perfect for transport of quads, small garden tractors;
- additional sidewalls transfer your trailer into a classic trailer with sidewalls convenient for transport of various goods;
- upgrade with M package, motorcycle transport option.
- Rigid and robust chassis containg 4 longitudinal beams
- Knott overun brake
- Special Al-Zn coated box
- Water resistant, anti-slip base plate with a thickness of 15 mm
- Zinc coated mudguards
- Great variety of accessories available
| Type of trailer | Box length | Box width | Box height | Weight (kg) | Loading capacity (kg) | Maximum authorised weight (kg) | Wheels |
|---|---|---|---|---|---|---|---|
| MB-P2 | 2,020 | 1,075 | 100 | 170 | 830 | 1000 | 13″ |
| MB-P3 | 2,435 | 1,250 | 95 | 249 | 1051 | 1300 | 13″ |
| MB-P4 | 2,435 | 1,435 | 95 | 270 | 1030 | 1300 | 13″ |
