Boat trailers
*Images of trailers are symbolic
Boat trailers without overrun brake
Boat trailers without overrun brake are designed for transporting boats of length up to 5,5 m and maximum authorised weight of 750 kg.
General information
- Hot zinc coated frame
- Equipment options (rollers, bunks)
- Rigid construction with adjustable bunks according to the type of boat
- Torque suspension with waterproof bearings requiring no special maintenance
- Retractable and removable light carrier
- Rollers with height adjustable brackets
Technical details
| Type of trailer | Weight (kg) | Loading capacity (kg) | Maximum authorized weight (kg) | Indicative frame length (mm) | Boat length | Trailer overall width (mm) |
|---|---|---|---|---|---|---|

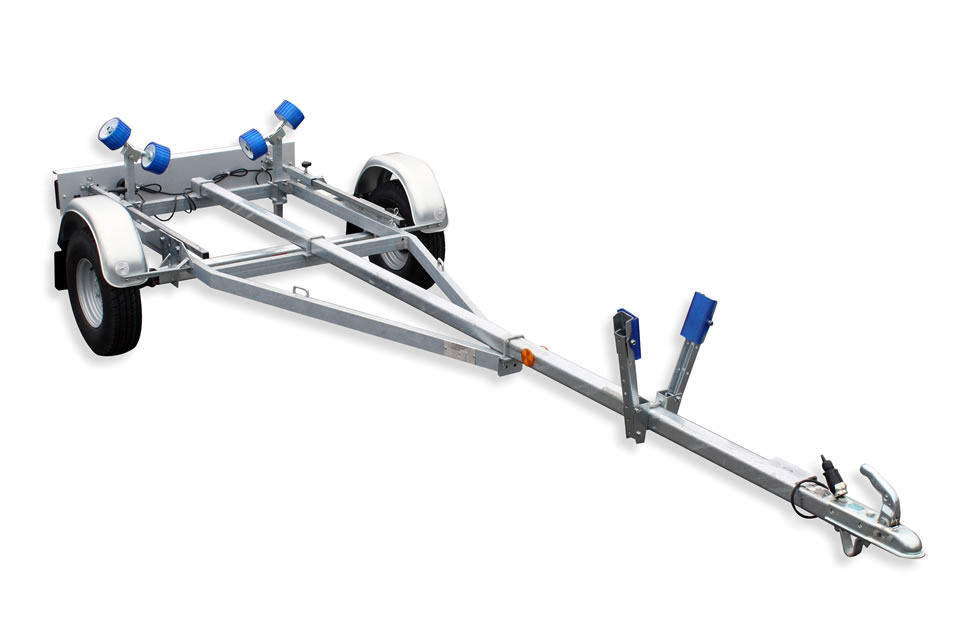

| BA 550 R | 113 | 437 | 550 | 3.209 | cca 4,5m | 1.594 |
| BA 750 R | 170 | 580 | 750 | 4.513 | cca 5,5m | 1.740 |
| BA 550 L | 113 | 437 | 550 | 3.209 | cca 4,5m | 1.594 |

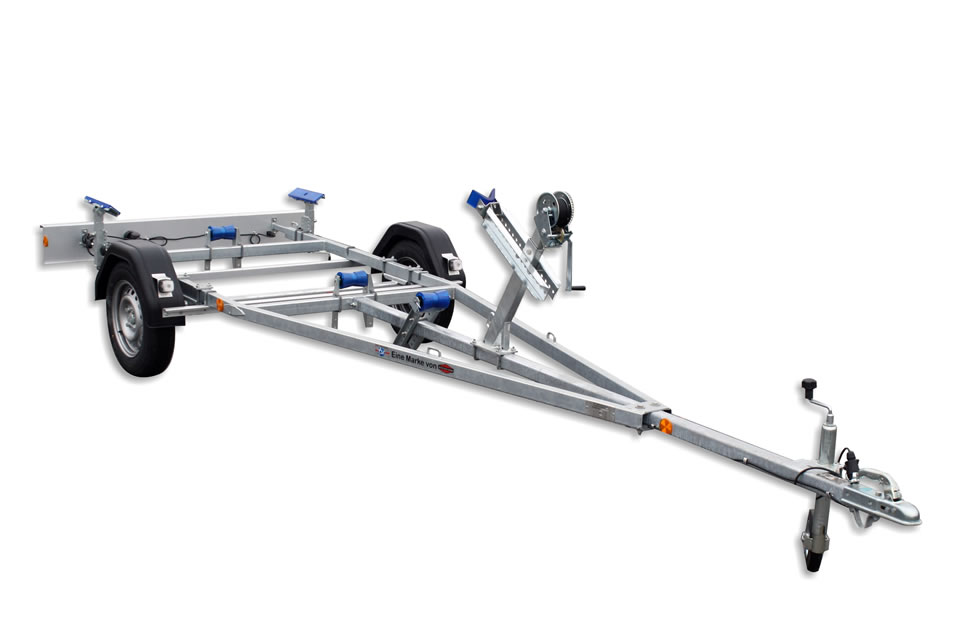

| BA 750 L | 168 | 582 | 750 | 4.513 | cca 5,5m | 1.740 |
| PP550 | 145 | 405 | 550 | 3.209 | cca 4,5m | 1.594 |
| PP750 | 165 | 585 | 750 | 4.513 | cca 5,5m | 1.740 |
*Images of trailers are symbolic
Boat trailers with overrun brake
Boat trailers with overrun brake are designed for transporting boats of length from 5,5 m to 8,5 m and maximum authorised weight up to 3500 kg.
General information
- Hot zinc coated frame
- Equipment options (rollers, bunks)
- Rigid construction with adjustable bunks according to the type of boat
- Torque suspension with waterproof bearings requiring no special maintenance
- Retractable and removable light carrier
- Rollers with height adjustable brackets
Technical details
| Type of trailer | Weight (kg) | Loading capacity (kg) | Maximum authorized weight (kg) | Indicative frame length (mm) | Boat length | Trailer overall width (mm) |
|---|---|---|---|---|---|---|

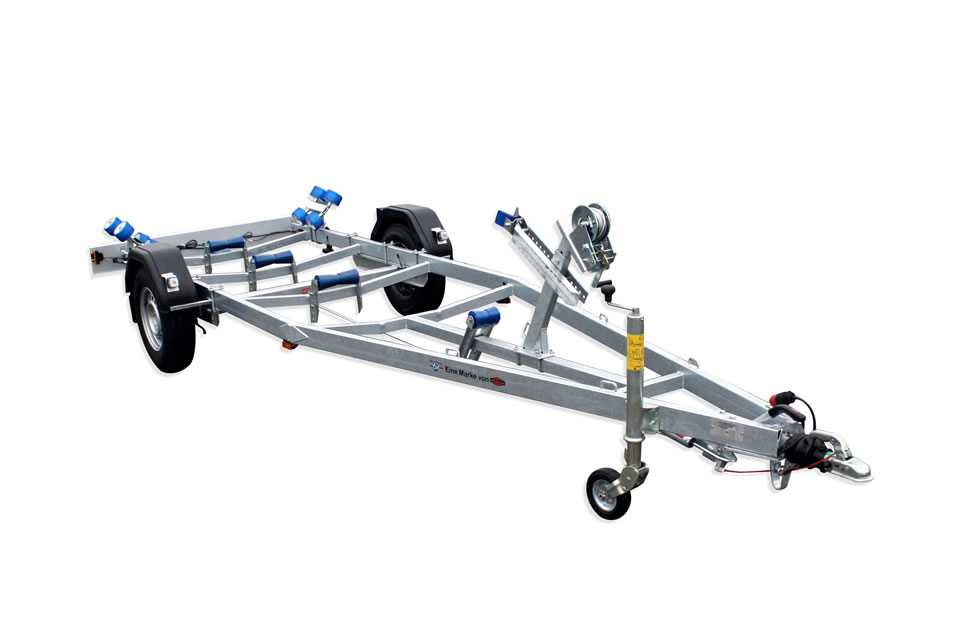

| BA 1300 R | 304 | 996 | 1300 | 5.505 | cca 5,8m | 1.970 |

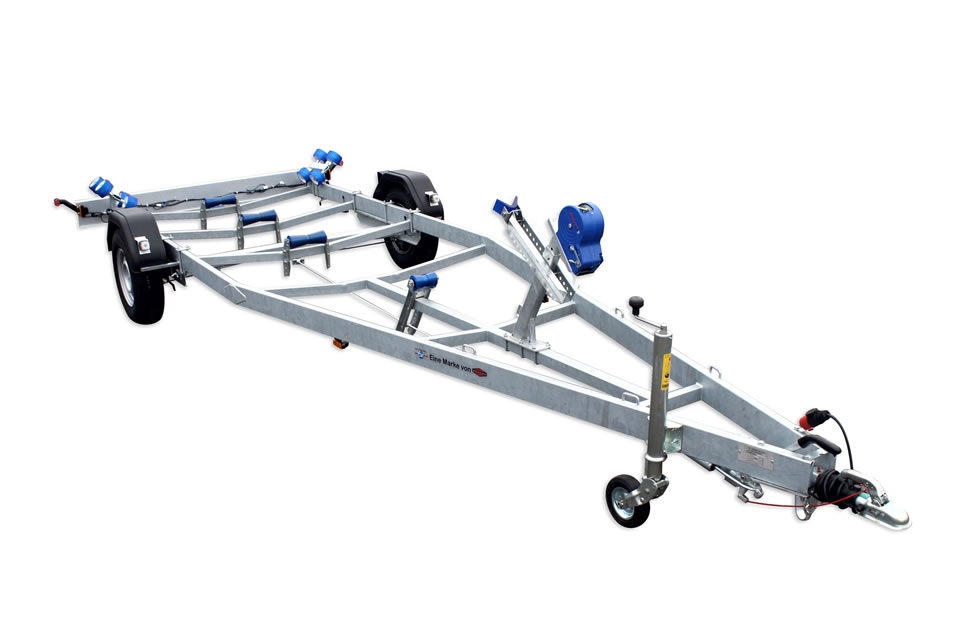

| BA 1800 R | 375 | 1425 | 1800 | 6.220 | cca 6,7m | 2.310 |

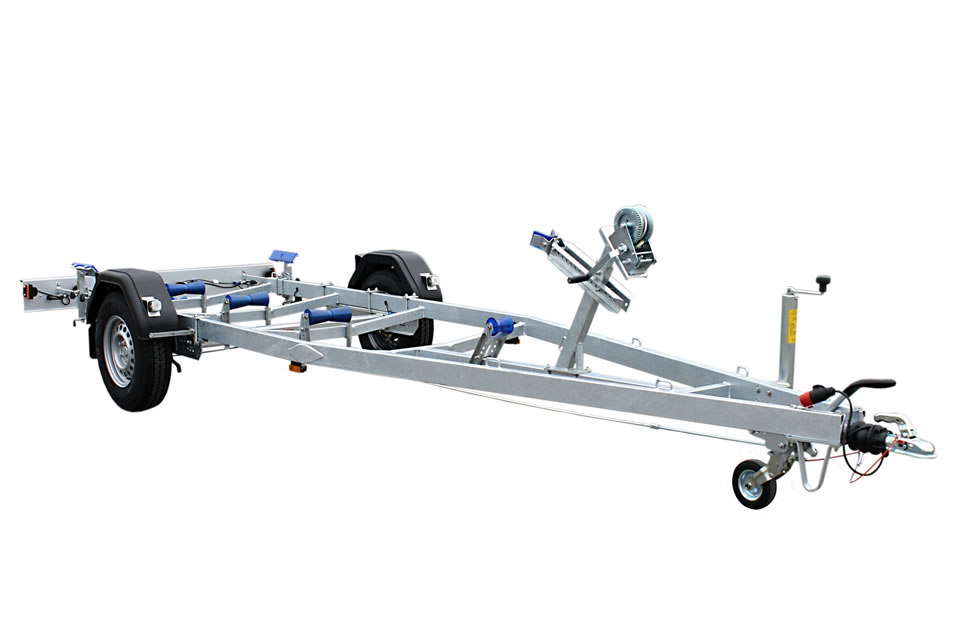

| BA 1300 L | 296 | 1004 | 1300 | 5.505 | cca 5,8m | 1.970 |

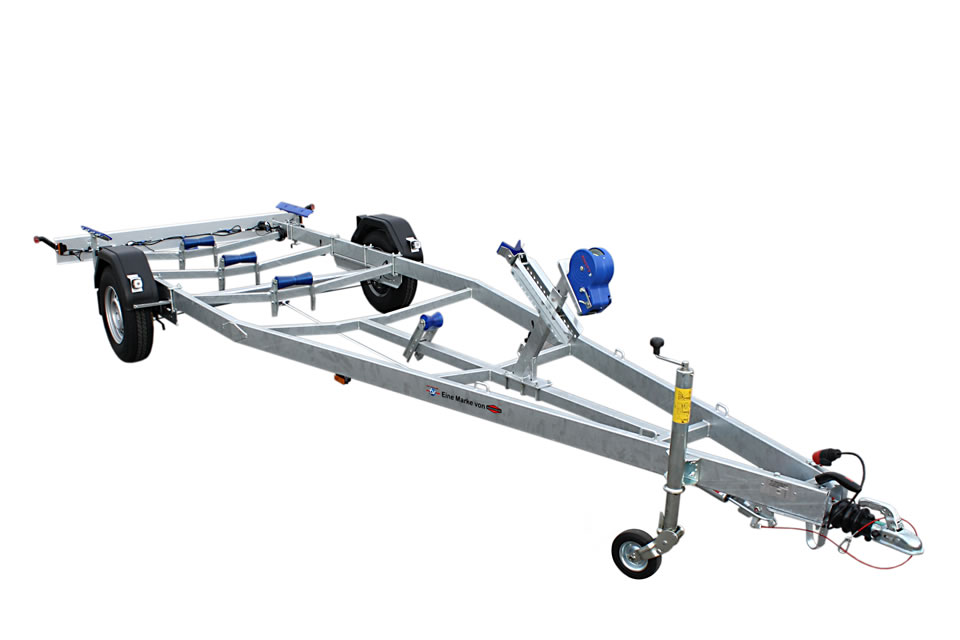

| BA 1800 L | 370 | 1430 | 1800 | 6.220 | cca 6,7m | 2.310 |

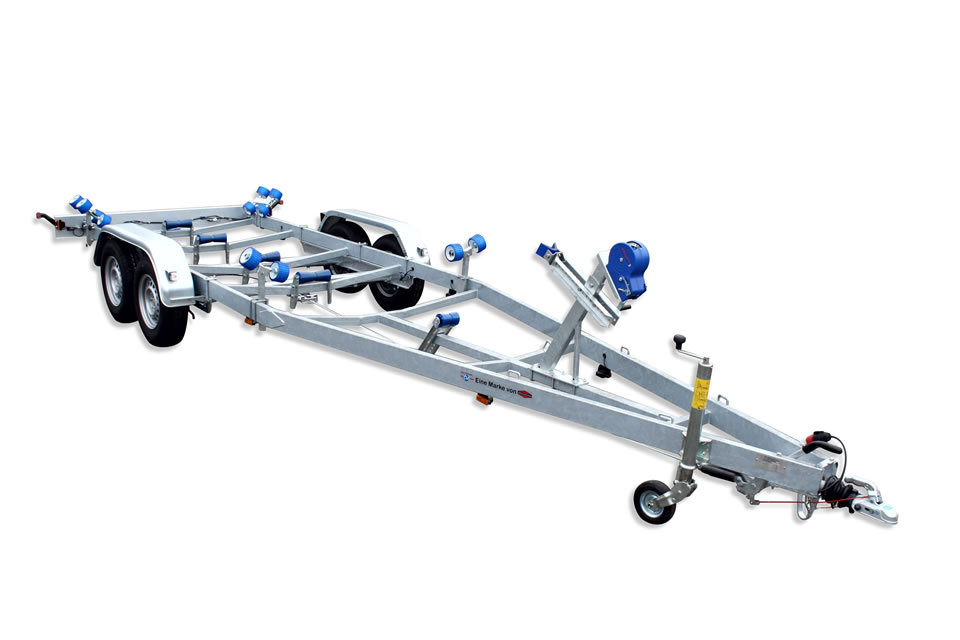

| BA 2700 R double axle | 508 | 2192 | 2700 | 7.135 | cca 7,5m | 2.290 |

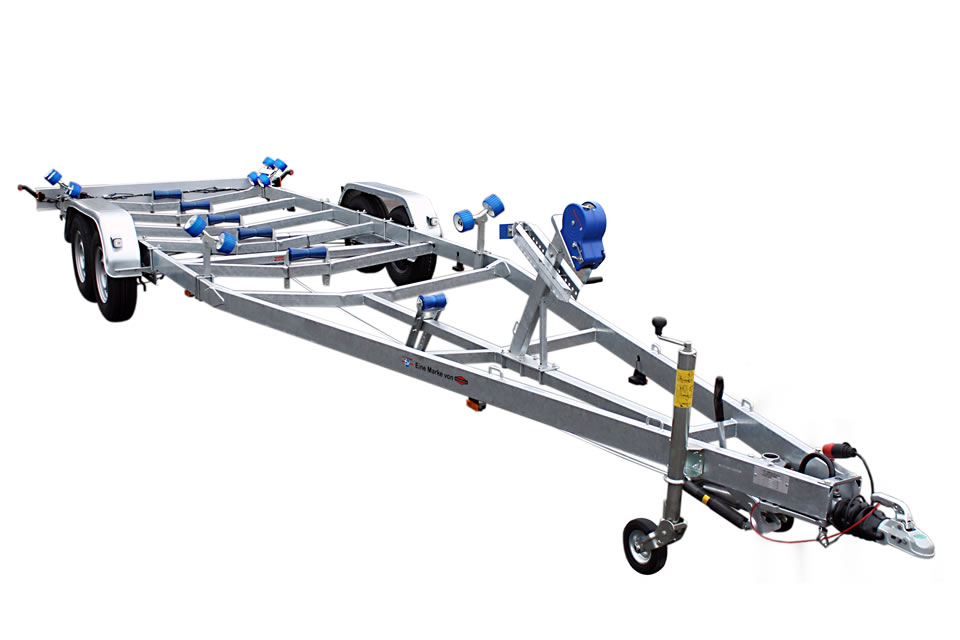

| BA 3500 R double axle | 622 | 2878 | 3500 | 8.515 | cca 8,5m | 2.520 |

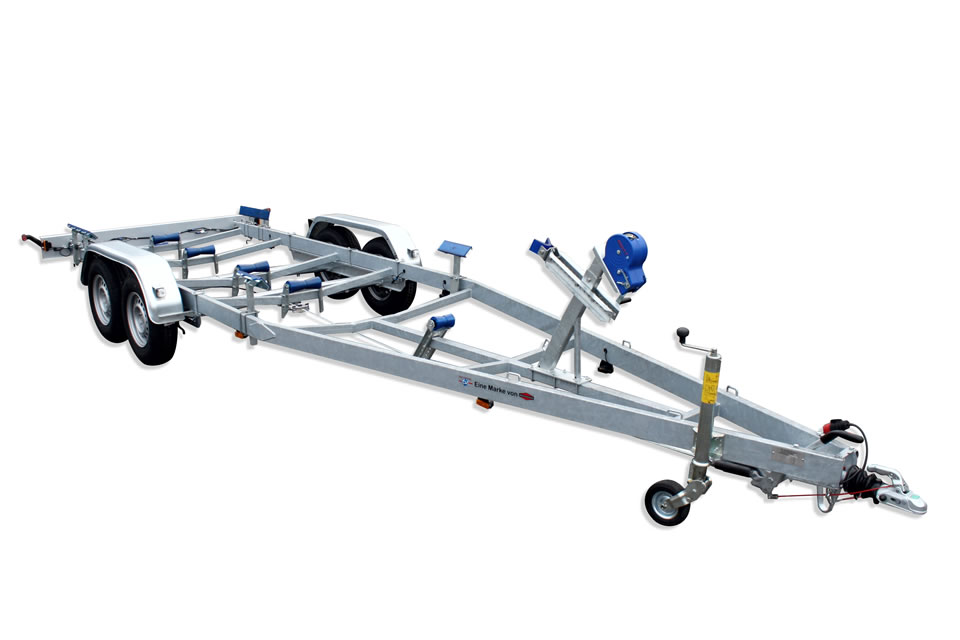

| BA 2700 L double axle | 506 | 2194 | 2700 | 7.135 | cca 7,5m | 2.290 |

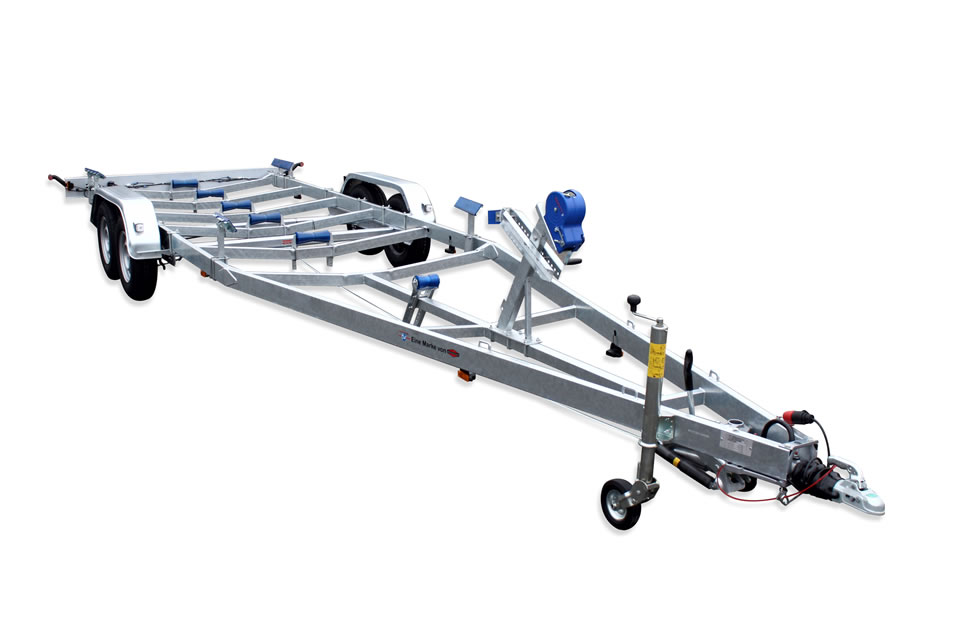

| BA 3500 L double axle | 616 | 2884 | 3500 | 8.515 | cca 8,5 m | 2.520 |
