Trailers for cars
*Images of trailers are symbolic

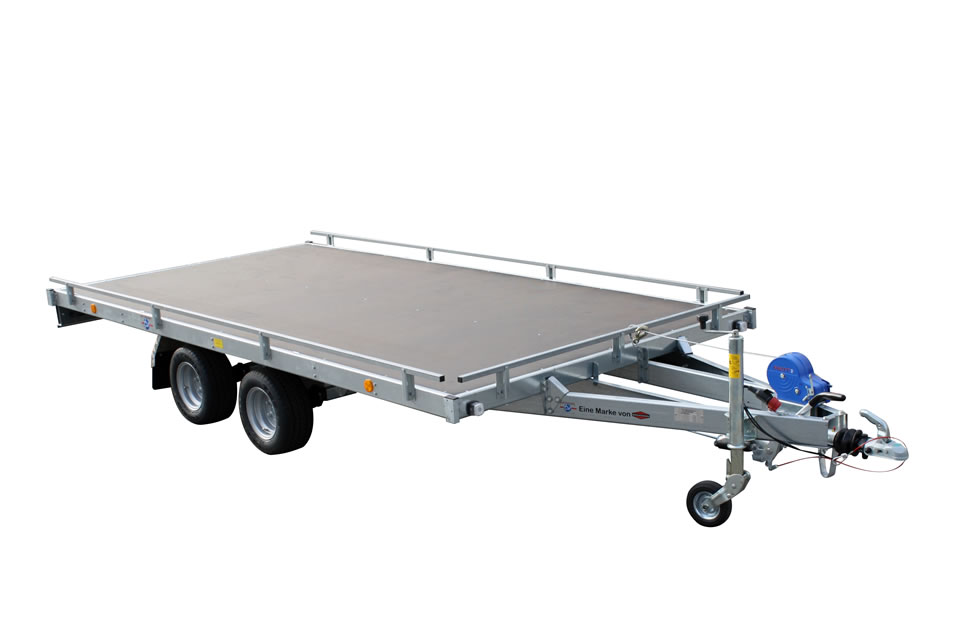

Trailer for cars with overrun brake
TBH trailer for cars is an ideal solution for transport of vehicles. It features a light yet robust and stable chassis with longitudinal beams and overrun brake. The frame construction with zinc coated V- shaped profiles offers great comfort in everyday use, even at high load.
General information
- 4 robust longitudinal beams
- V-shaped chassis
- Automatic jockey wheel
- 10″ wheels with high loading capacity
- Aluminium loading ramps with convenient storage when not in use
- Winch
- Railing around the whole platform or AL sidewalls of 300 mm in height
Technical details
| Type of trailer | Box length | Box width | Box height | Weight (kg) | Loading capacity (kg) | Maximum authorised weight (kg) | Wheels |
|---|---|---|---|---|---|---|---|
| TBH 4020/27 | 4.045 | 2.020 | 95 | 550 | 2150 | 2700 | 10″ |

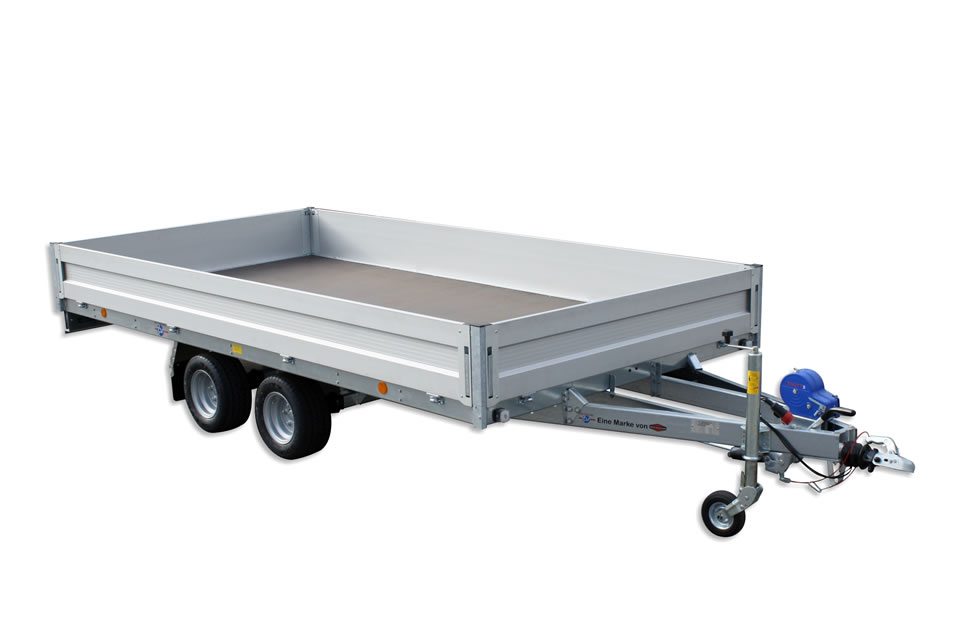

| TBH 4020/27 with Al sidewalls | 4.045 | 2.020 | 300 | 596 | 2104 | 2700 | 10″ |
| TBH 4520/27 | 4.545 | 2.020 | 95 | 570 | 2130 | 2700 | 10″ |
| TBH 4520/27-B with Al sidewalls | 4.545 | 2.020 | 300 | 616 | 2084 | 2700 | 10″ |
