Trailers with overrun brake

*Images of trailers are symbolic

Trailers with overrun brake – single axle

They are distinguished by a highly robust and durable structure, consisting of four longitudinal beams providing a high loading capacity – up to 1300 kg of the maximum authorised weight.

The trailers are fitted with an overrun braking device  allowing  reverse of the loaded trailer without   interfering with the trailer’s brake system. The jockey wheel is included in the series equipment.

General information
  • Rigid and robust chassis containing 4 longitudinal beams
  • Knott overrun brake
  • Special AL-Zn coated box
  • Water resistant anti-slip base plate with a thickness of 15 mm
  • Various accessories available
Technical details
Type of trailer Box length Box width Box height Weight (kg) Loading capacity (kg) Maximum authorised weight (kg) Wheels
EB2010 2.020 1.075 345 180 820 850/1000 13″
EB2412 2.435 1.235 340 285 1015 1000/1300 14″
EB2912 2.935 1.235 340 303 997 1300 14″
EB3412 3.435 1.235 340 330 970 1300 14″
EB2414 2.435 1.435 340 295 1005 1300 14″
EB2914 2.935 1.435 340 341 959 1300 14″
EB3414 3.435 1.435 340 340 960 1300 14″
EB2917 2.935 1.735 340 346 954 1300 14″
EB3417 3.435 1.735 340 368 932 1300 14″
EB2919 2.935 1.935 340 381 919 1300 14″
EB3419 3.435 1.935 340 393 907 1300 14″

*Images of trailers are symbolic

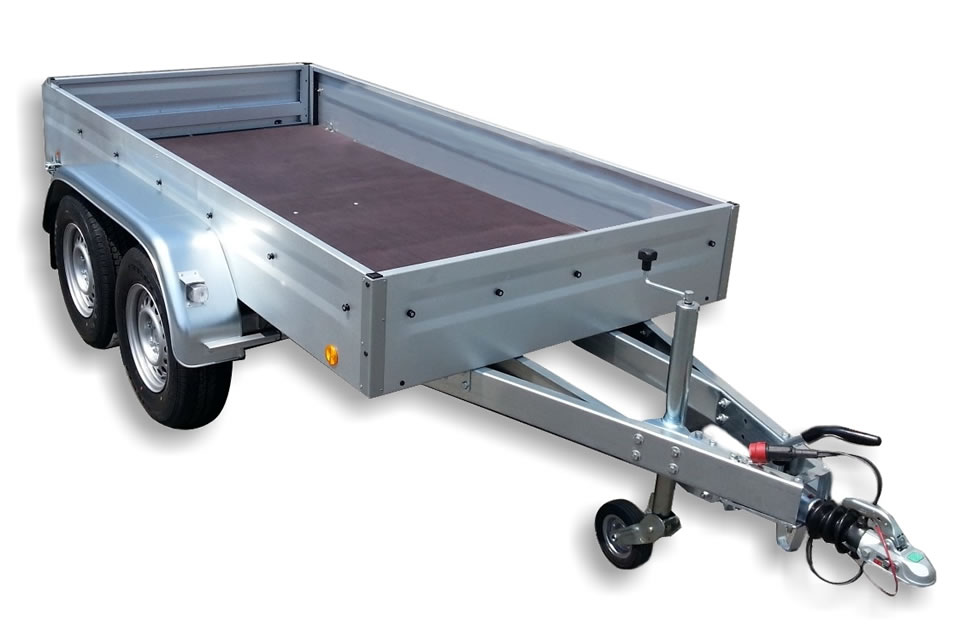

Trailers with overrun brake – double axle

Double axle trailers with overrun brake are suitable for transporting heavy loads of maximum authorised weight up to 3500 kg.

General information
  • Rigid and robust chassis containing 4 longitudinal beams
  • Knott overrun brake
  • Special Al-Zn coated box
  • Water resistant anti-slip base plate with a thickness of 15 mm
  • Polyester mudguards
  • Various accessories available (frame and PVC canvas, sidewall extensions, etc)
Technical details
Type of trailer Box length Box width Box height Weight (kg) Maximum authorised weight (kg) Wheels
TB2912 2.935 1.235 340 390 2000/2500/2700 14″
TB3412 3.435 1.235 340 436 2000/2500/2700 14″
TB2914 2.935 1.435 340 432 2000/2500/2700 14″
TB3414 3.435 1.435 340 455 2000/2500/2700 14″
TB2917 2.935 1.735 340 346 2000/2500/2700 14″
TB3417 3.435 1.735 340 485 2000/2500/2700 14″
TB2919 2.935 1.935 340 476 2000/2500/2700 14″
TB3419 3.435 1.935 340 496 2000/2500/2700 14″
